Rotary Auto Center-Post Leverless Tire Changer, Dual Roller - R1200

Rotary Auto Center-Post Leverless Tire Changer, Dual Roller - R1200

$ 68.08

$ 88.50

Unavailable
Rotary Auto Center-Post Leverless Tire Changer, Dual Roller - R1200

Rotary Auto Center-Post Leverless Tire Changer, Dual Roller - R1200

$ 68.08

$ 88.50

Title:
  • DefaultTitle
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

Looking for a tire changer that can handle even the most difficult-to-change wheels? Look no further than the Rotary R1200 Leverless PRO premium center locking tire changer. With variable speed control and synchronized dual bead-breaking rollers, this changer is up for any challenge. Plus, the mount/demount tool and upper and lower rollers easily index together with the same single control.

Hub Mounted, Dual Roller System Requires No Tools: There's no metal-to-metal contact with the patented leverless mount / demount tool. The three-position center post-clamping system increases productivity and reduces the risk of wheel damage.

Easy To Use Controls: The easy roller bead breaker system and mount / demount tool simultaneously position in one simple movement. Demount and mount the market's most challenging tire and wheel combinations - regular and reverse rims, run flat, and SST.

Features 0-15 Rpm Variable Speed Turntable Motor: The motor is equipped with an exclusive inverter that regulates rotational speed offering the operator customizable speed control. Rotational speed slows as the stress on the bead increases, avoiding any damage to the tire.


Training Videos:


Features:

  • Adjustable height quick-locking center post
  • Fully synchronized dual bead rollers & premium leverless tool
  • Easy-to-use controls
  • Match mount indexing
  • Blast inflation
  • UPPER and LOWER Bead Rollers
  • Single-point tool adjustment
  • Pneumatic helper with wheel lift
  • Variable Speed Control "VSC"
  • Handheld inflator/bead blaster

Standard Features:

  • Integrated wheel lift
  • Quick-lock rim clamping device with cone guard
  • Power-assisted bead mount / demount tool
  • Rotating pneumatic top bead pressing tool
  • Inflation station
  • Storage cabinet
  • Tire paste lubricant and brush

Specs:

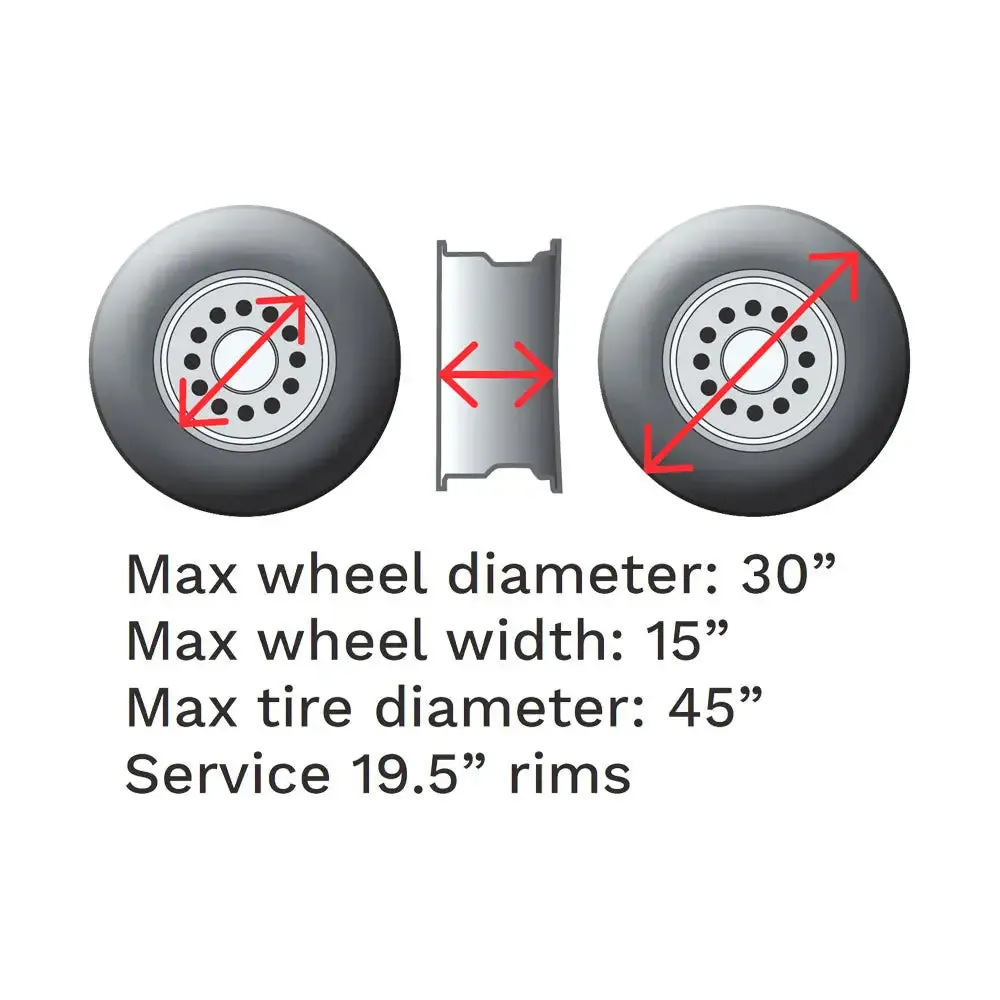

Max Tire Diameter: 45in
Max Wheel Diameter: 30in
Min Wheel Diameter: 10in
Max Tire Width: 19in*
Wheel Lift Capacity: 178 lbs
Maximum Torque: 120 Kgm
Service 19.5in Rim: Yes
Variable Speed Rotation Motor: 2hp / 1.5Kw inverter motor
Bead Breaking Force: 2,645 Ft/lbs. / each roller
- Bead Breaker Movement is Automatic - Manual Indent Function
Voltage: 220v / 60Hz / 0,75kW / 1ph
- Ships with NEMA L6 - 20 plug
Driven by: 220v / 1Ø / 60 Hz variable speed motor
Weight: 1,100 lbs
*Depending on the wheel offset

Site Requirements:
- 220V /1Ø / 20 amp power supply
- 115-145 psi air supply
- NEMA L6-20P Plug

Ref No.:
R1200
RWC1200

Includes:

1 x Tub mounting paste
1 x Brush
1 x Traction device

Optional Accessories
VSG1000A158: Universal flange for reverse and Chrome Clad wheels
VSG1000A152: Light truck adapter
- For centering locking tire changer - 19.5" wheels
VSG1000A102: 5 stud kit for reverse rims / 110mm long
- For use with VSG1000A158 flange
VSG1000A86: Reposition-able mirror
